1/8" 1FL .015CR SE PCD DIAMOND END MILL

1/8" 1FL .015CR SE PCD DIAMOND END MILL

HATL12208 12208
497.80 / EA
http://schema.org/OutOfStock

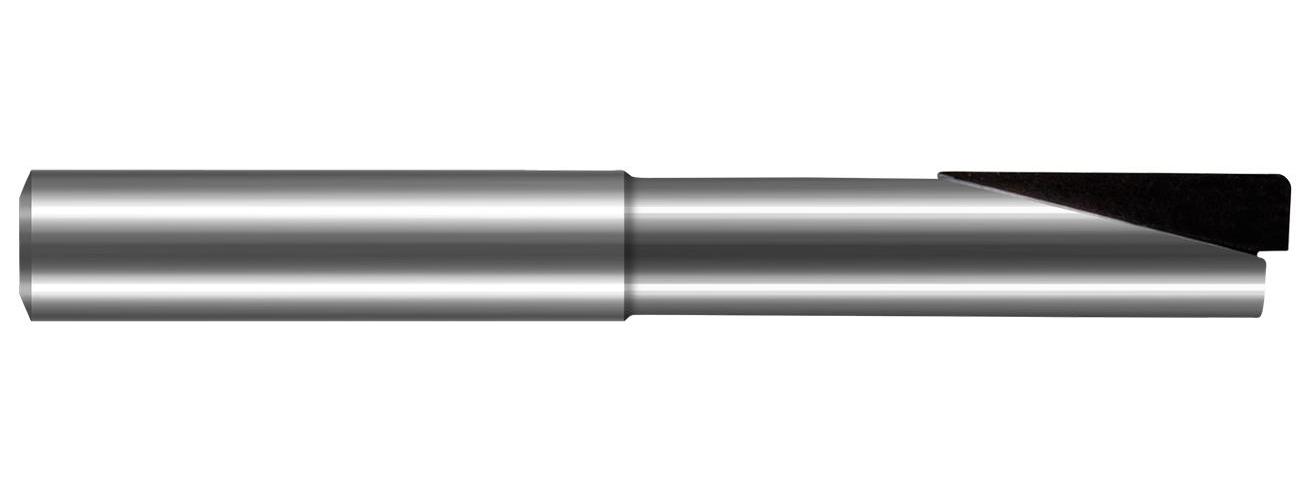

1/8 x.015R 1FL PCD SE SC END MILL
  • Type: Center Cut
  • Cutter Diameter Decimal Inch: 0.125
  • Cutter Diameter Fractional Inch: 1/8
  • Cutter Diameter Metric: 3.175
  • Corner Radius: 0.015in, 1/64 in
  • Number of Flutes: 1
  • Length of Cut Decimal Inch: 0.25
  • Length of Cut Fractional Inch: 1/4
  • Length of Cut Metric: 6.35
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: PCD, PCD Diamond
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Included Angle: 120°
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.115in
  • Overall Reach: 0.5in
QTY
Add to List
  • Item Features
  • PCD Diamond brazed on carbide body
  • Applicable Materials are Aluminum, Wood, Composites, Graphite
  • Overall Reach 0.5000 in (1/2)
