JS513015F2C.0Z3-NXT
JS513015F2C.0Z3-NXT
SEC02928157
02928157
42.55
/ EA
http://schema.org/OutOfStock
/Product/SEC02928157
- Type: Center Cutting Single End Universal
- Cutter Diameter Decimal Inch: 0.059
- Cutter Diameter Metric: 1.5
- Corner Radius: 0.015 mm, 0.015mm
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.118
- Length of Cut Metric: 3
- Overall Length Decimal Inch: 38
- Overall Length Metric: 965.2
- Material: Solid Carbide
- Surface Treatment: NXT/PVD Coated
- Helix Angle: 46 deg, 46°
- Shank Diameter Decimal Inch: 0.118
- Shank Diameter Metric: 3
- Series: JABRO® Solid2 JS513
- Shank Type: Cylindrical
- ANSI Code: JS513015F2C.0Z3-NXT
- Country of Origin: NL
- Flute Type: Right Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: JS513015F2C.0Z3-NXT
- Manufacturer Name: Seco Tools

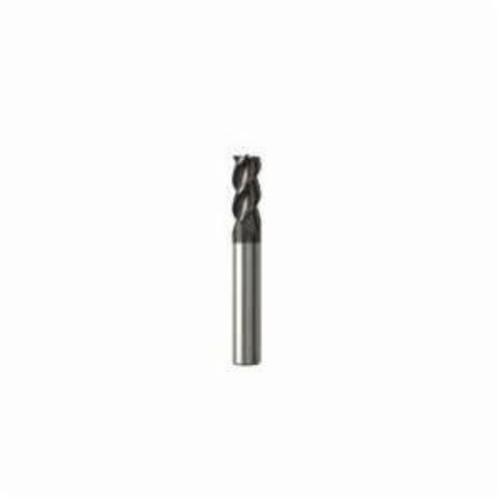

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
- Application
General Machining, Radial, Ramping, Plunging and Drilling
