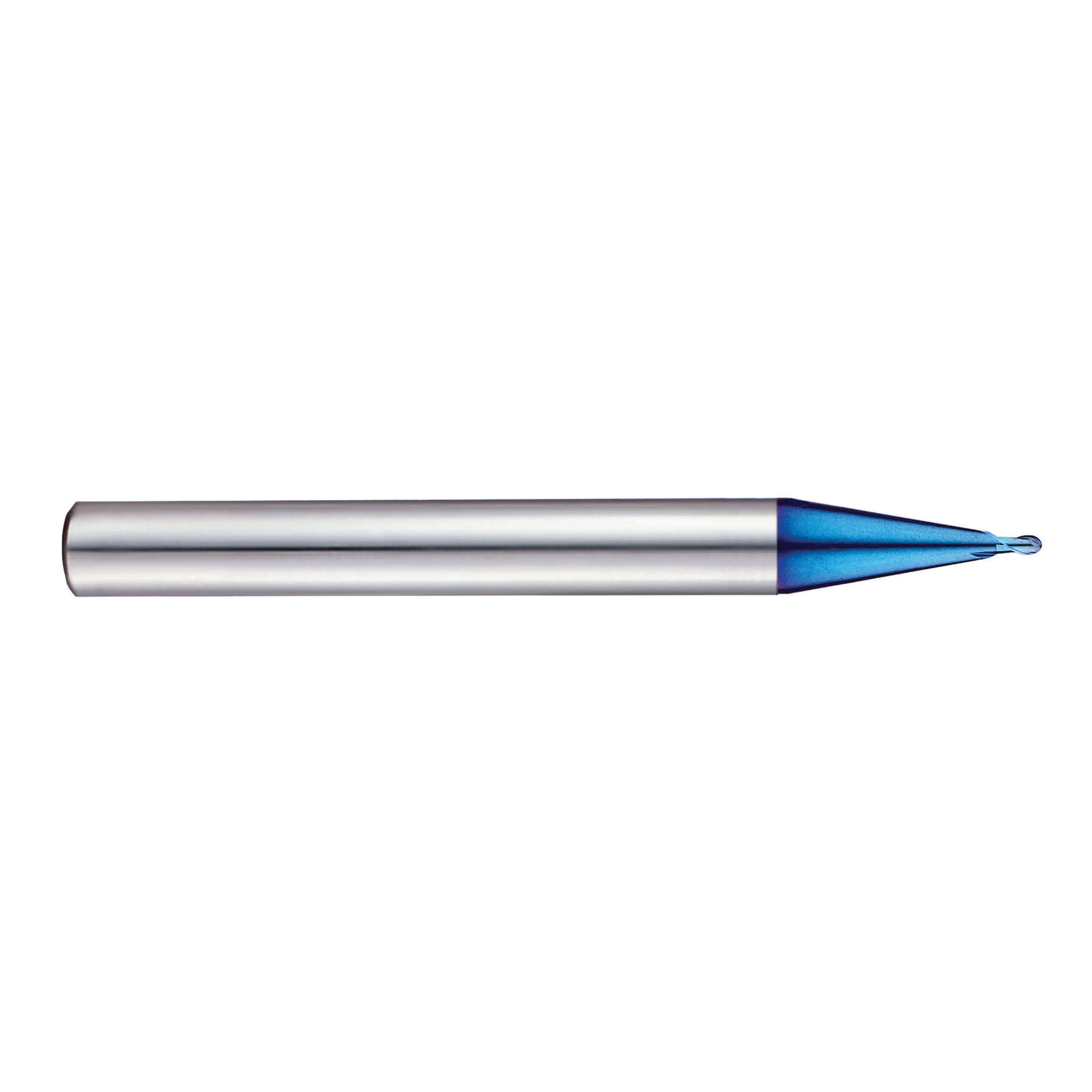

.4 x6 x.4 x50 R.20 2FL MIN
.4 x6 x.4 x50 R.20 2FL MIN
YGTCG8A53004
G8A53004
115.01
/ EA
http://schema.org/OutOfStock
/Product/YGTCG8A53004
- Type: Ball Nose Center Cut Miniature Metric
- Cutter Diameter Decimal Inch: 0.016
- Cutter Diameter Fractional Inch: 1/64
- Cutter Diameter Metric: 0.4
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.016
- Length of Cut Metric: 0.406
- Overall Length Decimal Inch: 50
- Overall Length Metric: 1270
- Material: Nano Grain Carbide
- Surface Treatment: Blue Coated
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 0.236
- Shank Diameter Metric: 6
- Shank Type: Plain
- Series: G8A53 X5070
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Item Features
- Designed to machine high hardened materials
- Suitable for dry cutting, high speed cutting due to newly developed raw material and new coating
- Excellent workpiece finish
- Designed for high precision milling operation
- Higher wear resistance
