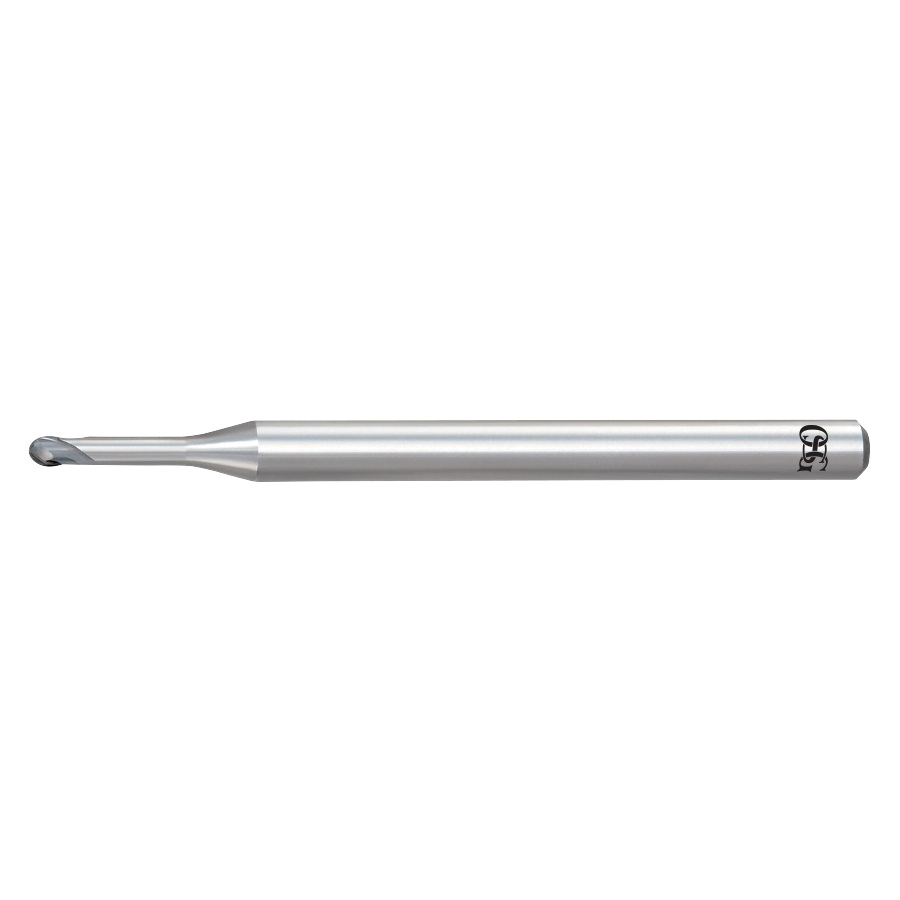

0.2 x 0.3MM WXL-EBD END MILL
0.2 x 0.3MM WXL-EBD END MILL
OSG3110203
3110203
177.99
/ EA
http://schema.org/OutOfStock
/Product/OSG3110203
- Type: Center Cutting High Performance Long Neck Premium Regular Length Rib Processing Single End
- Cutter Diameter Decimal Inch: 0.008
- Cutter Diameter Fractional Inch: 1/64
- Cutter Diameter Metric: 0.2
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.008
- Length of Cut Fractional Inch: 1/64
- Length of Cut Metric: 0.203
- Overall Length Decimal Inch: 45
- Overall Length Metric: 1143
- Material: Carbide
- Surface Treatment: WXL® Coated
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 0.157
- Shank Diameter Metric: 4
- Shank Type: Shrink Fit
- Series: 3790
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For used to cut and contour molds for plastic parts, which include electric home appliances, die-casting dies for automotive parts, stamping molds, for pre-hardened and hardened steels
- EXOCARB® WXL® high performance end mills for dental applications in PMMA, PEEK, WAX and metal
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
