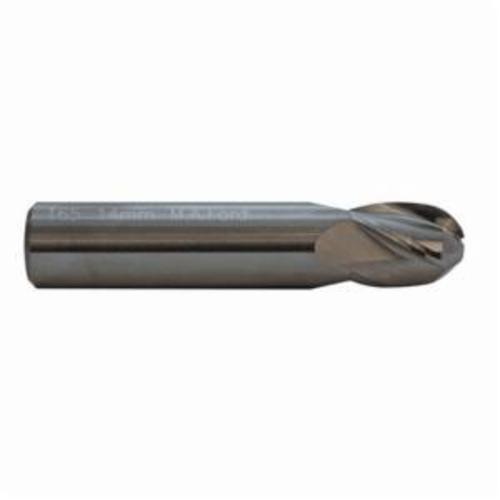

SER 165 3/16" 4FL CC BN STUB CARB END MILL
SER 165 3/16" 4FL CC BN STUB CARB END MILL
MAF16518750C
16518750C
20.96
/ EA
http://schema.org/OutOfStock
/Product/MAF16518750C
- Cutter Diameter: 3/16 in
- Cutter Diameter Decimal Inch: 0.1875
- Cutter Diameter Fractional Inch: 3/16
- Cutter Diameter Metric: 4.762
- Type: Ball Nose Center Cutting Stub Length
- Number of Flutes: 4
- Length of Cut: 3/8 in
- Overall Length: 2 in
- Material: Carbide
- Helix Angle: 30 deg
- Shank Diameter: 3/16 in
- Series: 165
- Country of Origin: US
- Cutting Direction: Right Hand
- Manufacturer Name: M.A. Ford
M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
- Application
- Item Features
- Standards
General Purpose
- Manufactured with full ball radius end
- Applicable for steel, stainless steel, cast iron, special alloys, 35-65Rc hardened steel and non-ferrous metals
- Whisper blend transition between OD and neck
- Reduced vibration harmonics
- Improved part finishes
- Maintains cutting edge strength and sharpness for improved tool life
- Slotting at 1X Dia deep
- TiCN is a multi-layer coating
- Because of the multi-layer composition, TiCN is tougher than TiN, even though TiCN is harder
- The added toughness of the TiCN coating makes it a good choice for mechanically stressed edges like in end mill applications
- The higher hardness makes TiCN a good choice for abrasive applications where higher wear resistance is required
- +0.000/-0.002 in tolerance D1
- 3000 HV microhardness
- 752 deg F maximum service
- 0.4 friction coefficient
ISO 9001:2008
