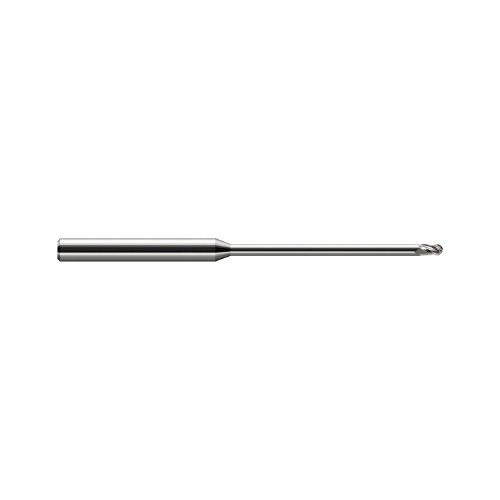

.030 3FL CARB .045LOC BALL END MILL

.030 3FL CARB .045LOC BALL END MILL

HATL970730 970730
80.00 / EA
http://schema.org/OutOfStock
.030 3FL CARB .045LOC BALL END MILL
  • Type: Center Cut Imperial Long Reach Miniature Stub Length
  • Cutter Diameter Decimal Inch: 0.03
  • Cutter Diameter Metric: 0.762
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.045
  • Length of Cut Metric: 1.143
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Reduced
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Performance Company, Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Deep Cavity Machining Applications
  • Long length design for deep cavities, up to 8 in overall length
  • Stub flutes for maximum rigidity
