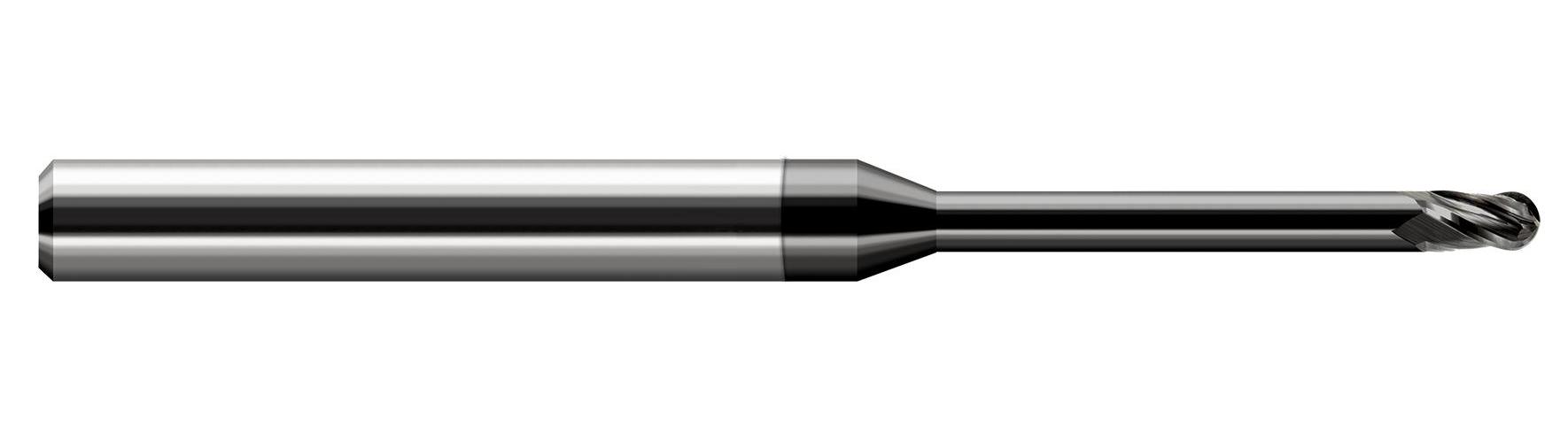

.010BALL DIAMND CARB STB FL END MILL

.010BALL DIAMND CARB STB FL END MILL

HATL966010-C4 966010-C4
89.50 / EA
http://schema.org/OutOfStock
.010BALL DIAMND CARB STB FL END MILL
  • Cutter Diameter Decimal Inch: 0.01
  • Cutter Diameter Fractional Inch: 1/64
  • Cutter Diameter Metric: 0.254
  • Type: Center Cut Stub Length
  • Number of Flutes: 3
  • Length of Cut: 0.015in, 1/64 in
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: Amorphous Diamond, C4
  • Helix Angle: 30 deg
  • Shank Diameter: 0.125in, 1/8 in
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut Multiple: (1.5x)
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.0092in
  • Overall Reach: 0.1in
  • Reach Multiple: (10x)
QTY
Add to List
  • Item Features
  • Long length design for deep cavities, up to 8 in overall length
  • Stub flute for maximum rigidity
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Overall Reach 0.1000 in
  • Reach Multiple (10x)
  • Profile Ball
