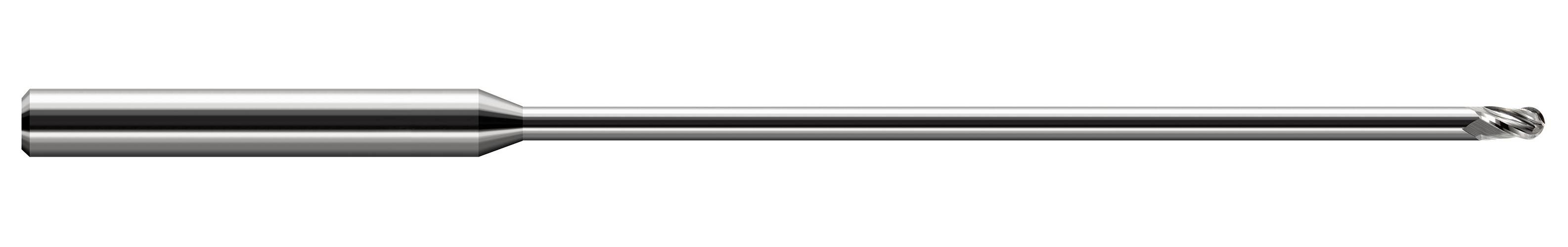

.020 3FL CARB .030LOC BALL END MILL
.020 3FL CARB .030LOC BALL END MILL
HATL922720
922720
112.70
/ EA
http://schema.org/OutOfStock
/Product/HATL922720
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Type: Center Cut Stub Length
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.03
- Length of Cut Metric: 0.762
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0192in
- Overall Reach: 0.6in
- Reach Multiple: 30X
- Item Features
- Standards
- Long length design for deep cavities, up to 8 in overall length
- Stub flute for maximum rigidity
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.6000 in
- Reach Multiple (30x)
- Profile Ball
