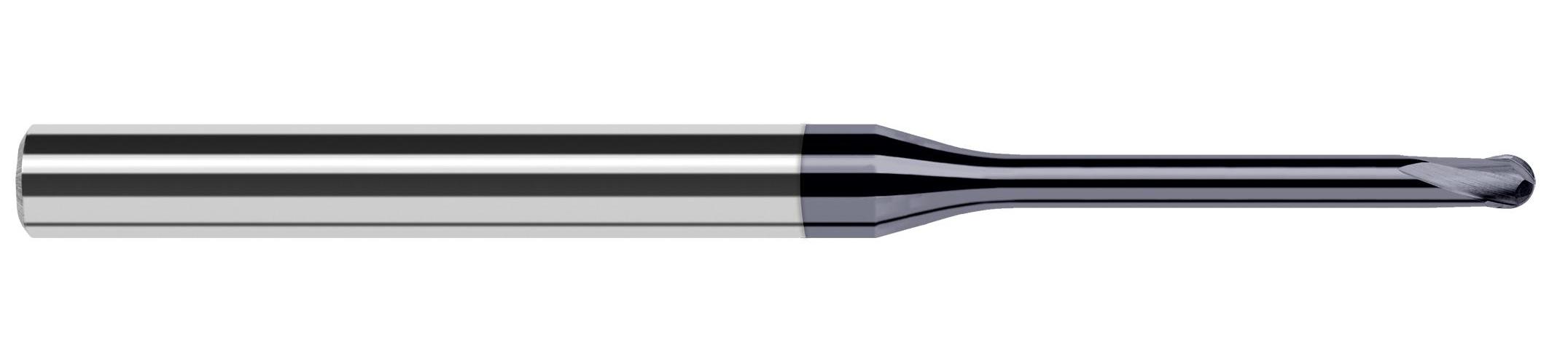

.020 2FL BALL END MILL
.020 2FL BALL END MILL
HATL919120-C6
919120-C6
108.00
/ EA
http://schema.org/OutOfStock
/Product/HATL919120-C6
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.5, 0.508
- Type: Center Cut
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.016
- Length of Cut Metric: 0.406
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Helix Angle: 20 deg
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (0.8x)
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.019in
- Overall Reach: 0.2in
- Reach Multiple: (10x)
- Item Features
- Designed to profile and finish hardened tool, die, and mold steels 46Rc to 68Rc
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Geometry includes stub flute, large rigid core diameter, and eccentric relief
- Increased shank diameter to maintain strength and stiffness
- Center cutting (3 flutes to center)
- Reduced neck diameter to avoid heeling
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Overall Reach 0.2000 in
- Profile Ball
