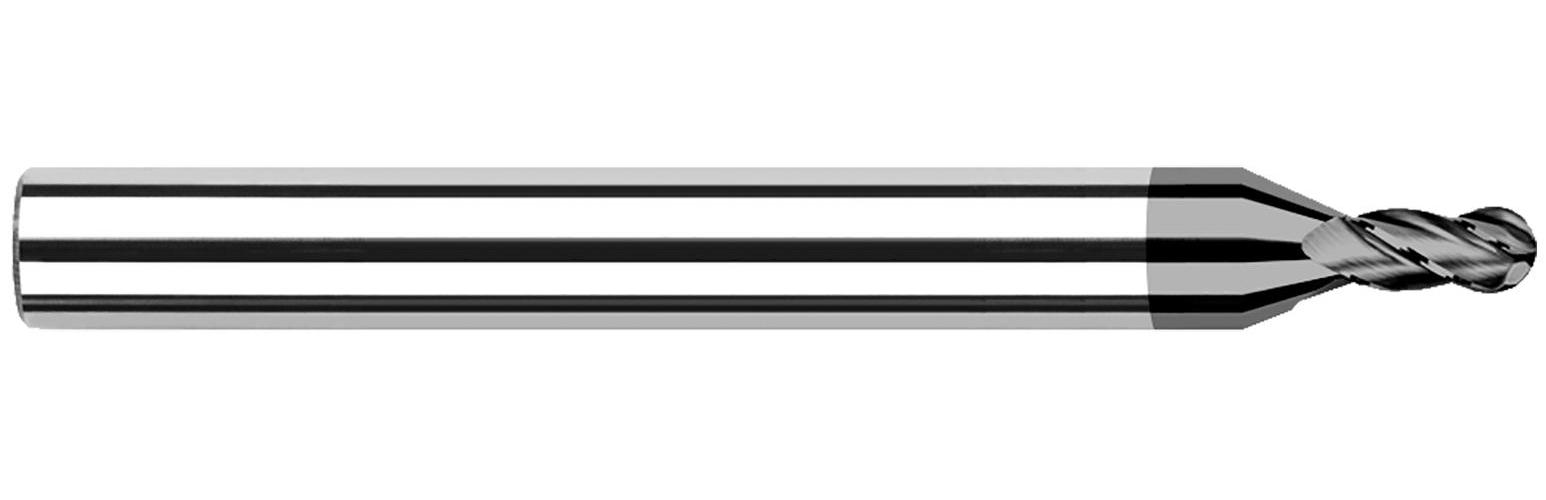

.020 4FL CARB .030LOC BALL END MILL
.020 4FL CARB .030LOC BALL END MILL
HATL914420
914420
115.50
/ EA
http://schema.org/OutOfStock
/Product/HATL914420
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Type: Center Cut
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.03
- Length of Cut Metric: 0.762
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: C5, CVD Diamond
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Application
- Item Features
- Standards
Ideal for machining graphite and composites, green carbide and green ceramics
- True crystalline CVD diamond on solid carbide substrate
- Applicable Materials are Composites, Graphite
- Profile Ball
PROP65: This product contains chemicals known to the State of California to cause cancer
