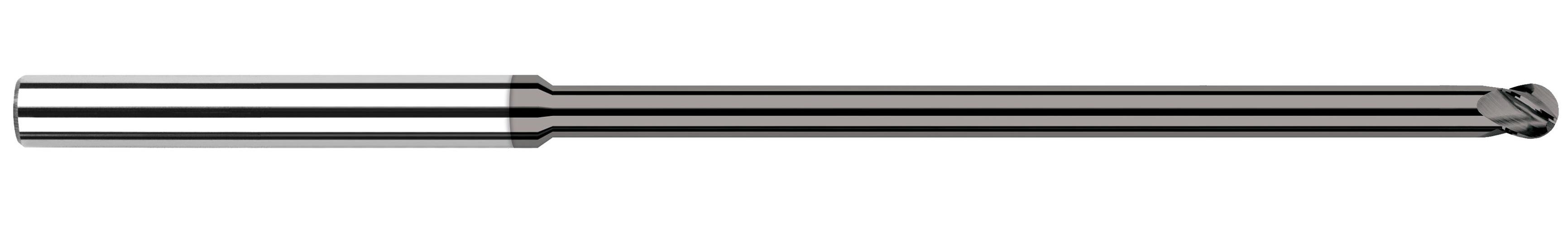

.020 4FL CARB .030LOC BALL END MILL

.020 4FL CARB .030LOC BALL END MILL

HATL841820 841820
188.70 / EA
http://schema.org/OutOfStock
  • Cutter Diameter Decimal Inch: 0.02
  • Cutter Diameter Metric: 0.508
  • Type: Center Cut Stub Length Long Reach
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.03
  • Length of Cut Metric: 0.762
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: C5, CVD Diamond
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.0187in
  • Overall Reach: 0.36in
  • Reach Multiple: 18X
QTY
  • Application
  • Item Features
  • Standards
Ideal for machining graphite and composites, green carbide and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • Reduced neck for clearance and maximum rigidity
  • Applicable Materials are Composites, Graphite
  • Overall Reach 0.3600 in
  • Reach Multiple (18x)
  • Profile Ball
