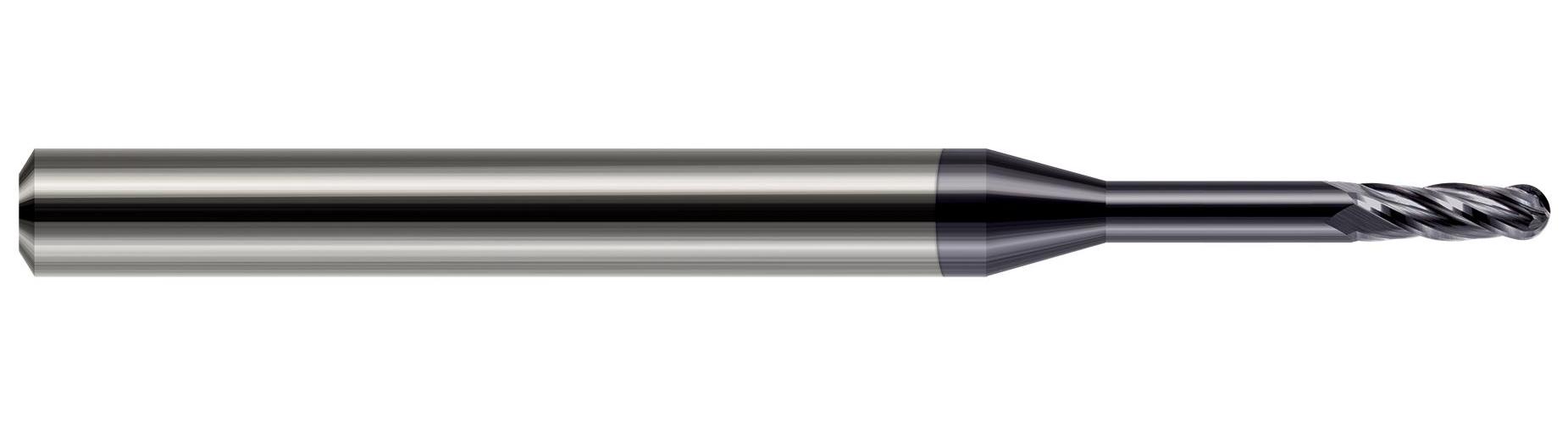

.020" 4FL 7X LRCH STD FLUTE BN CARB END MILL
.020" 4FL 7X LRCH STD FLUTE BN CARB END MILL
HATL805520-C3
805520-C3
65.70
/ EA
http://schema.org/OutOfStock
/Product/HATL805520-C3
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Type: Center Cut Standard Length
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.06
- Length of Cut Metric: 1.524
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (3x)
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0192in
- Neck Length: 0.08in
- Overall Reach: 0.14in
- Reach Multiple: (7x)
- Item Features
- Length of cut = 3 x diameter
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 0.1400 in (9/64)
- Reach Multiple (7x)
- Profile Ball
