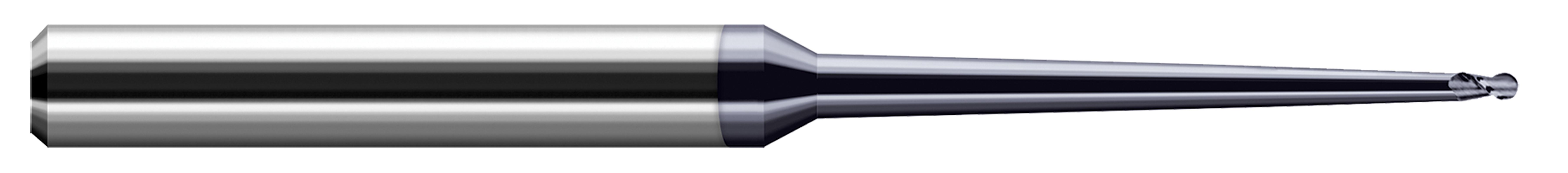

.125 4FL 2.5RCH CLEAR BALL END MILL

.125 4FL 2.5RCH CLEAR BALL END MILL

HATL734408-C6 734408-C6
125.67 / EA
http://schema.org/OutOfStock
.125 4FL 2.5RCH CLEAR BALL END MILL
  • Type: Tapered
  • Cutter Diameter Decimal Inch: 0.125
  • Cutter Diameter Fractional Inch: 1/8
  • Cutter Diameter Metric: 3.175
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.188
  • Length of Cut Fractional Inch: 3/16
  • Length of Cut Metric: 4.775
  • Overall Length Decimal Inch: 4
  • Overall Length Fractional Inch: 4
  • Overall Length Metric: 101.6
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Nano
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.313
  • Shank Diameter Fractional Inch: 5/16
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Designed for deep cavity profiling
  • Long flute and long length design for deep cavities
  • Mills deep pockets
  • Center cutting
