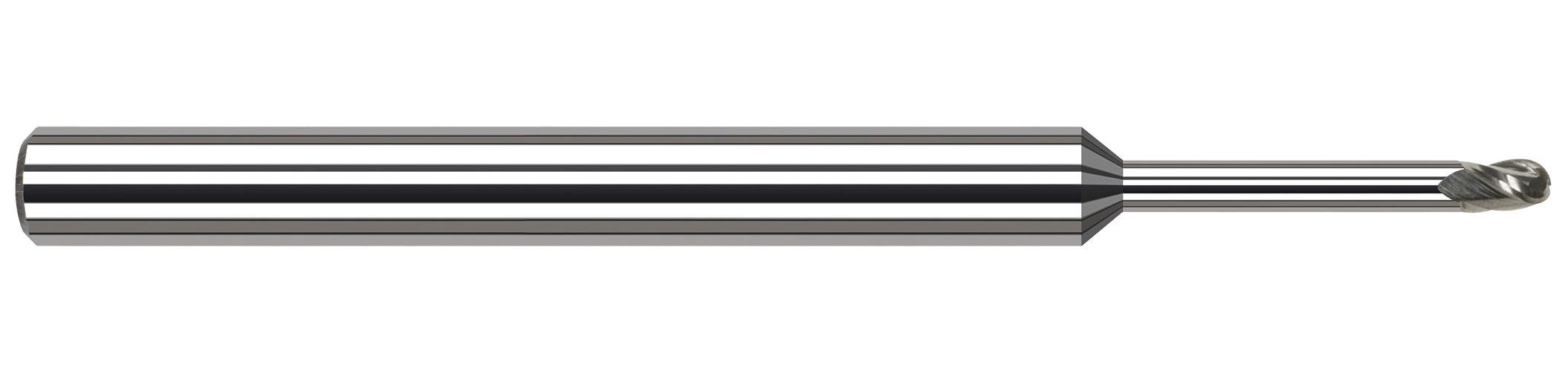

.015" 3FL VAR HELIX 8X BN CARB END MILL
.015" 3FL VAR HELIX 8X BN CARB END MILL
HATL54415
54415
72.10
/ EA
http://schema.org/OutOfStock
/Product/HATL54415
- Cutter Diameter Decimal Inch: 0.015
- Cutter Diameter Fractional Inch: 1/64
- Cutter Diameter Metric: 0.381
- Type: Center Cut Stub Length Variable Helix
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.022
- Length of Cut Metric: 0.559
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Helix Angle: 42 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0142in
- Overall Reach: 0.125in
- Reach Multiple: 8X
- Shoulder Flare: 5
- Single or Double End: Single End
- Weldon Flat: No
- Application
- Item Features
- Standards
For off-center contour milling applications
- Variable helix design (approx. 42) improves performance in off-center contour milling applications
- Reduced neck diameter to avoid heeling
- Ball end for profiling
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.1250 in (1/8)
- Reach Multiple (8x)
- Profile Ball
