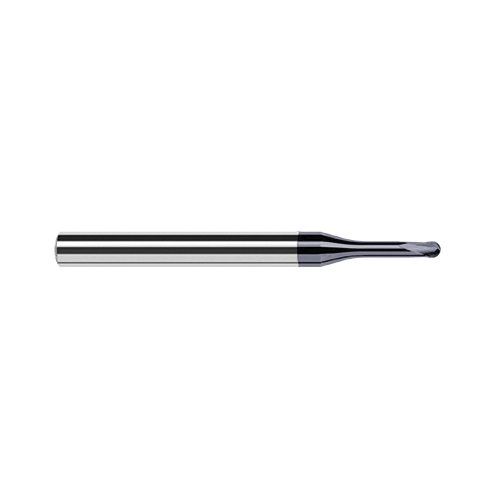

.010" 2FL .008"LOC .050"RCH CARB BN END MILL

.010" 2FL .008"LOC .050"RCH CARB BN END MILL

HATL38710-C6 38710-C6
118.00 / EA
http://schema.org/OutOfStock
.010 x.008 x.050RCH 5x BALL
  • Cutter Diameter Decimal Inch: 0.01
  • Cutter Diameter Fractional Inch: 1/64
  • Cutter Diameter Metric: 0.254
  • Type: Center Cut Imperial Large Rigid Core Stub Length
  • Number of Flutes: 2
  • Length of Cut: 0.008 in, 0.008in
  • Overall Length: 2-1/2 in, 2-1/2in
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Nano Coated
  • Shank Diameter: 1/4 in, 1/4in
  • : 63.5
  • : 2.5
  • : 2-1/2
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Performance Company, Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Finishing Applications
  • Designed to profile and finish hardened tool, die and mold steels 46RC to 68RC
  • Select carbide grade for improved edge retention
  • Latest generation AlTiN Nano coating offers superior hardness and heat-resistance
  • Geometry includes stub flute, large rigid core diameter and eccentric relief
  • Increased shank diameter to maintain strength and stiffness
  • h6 shank tolerance for high precision tool holders
  • Reduced neck diameter to avoid heeling
