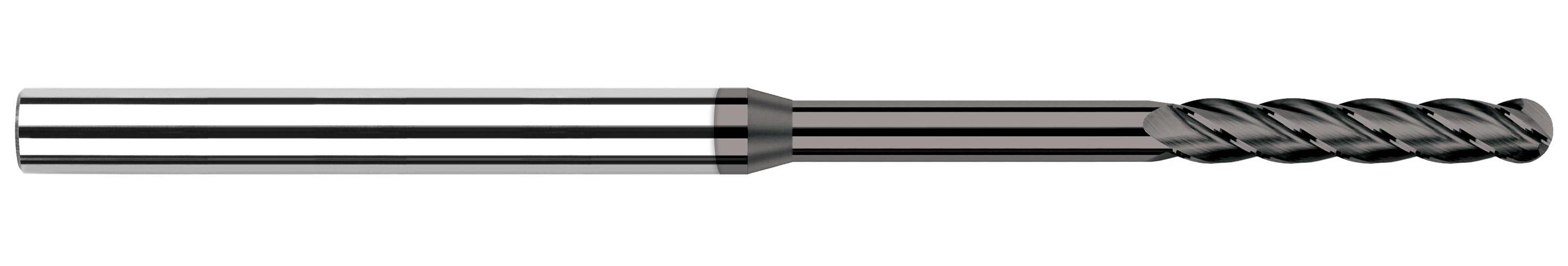

.020" 4FL LNG RCH LNG FL CVD BALL END MILL
.020" 4FL LNG RCH LNG FL CVD BALL END MILL
HATL36520
36520
196.20
/ EA
http://schema.org/OutOfStock
/Product/HATL36520
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Type: Center Cut Long Length Long Reach
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.1
- Length of Cut Metric: 2.54
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: C5, CVD Diamond
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Included Angle: 60°
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.018in
- Overall Reach: 0.2in
- Reach Multiple: 10X
- Application
- Item Features
- Standards
Ideal for machining graphite and composites, green carbide and green ceramics
- True crystalline CVD diamond on solid carbide substrate
- Reduced neck for clearance and maximum rigidity
- Applicable Materials are Composites, Graphite
- Overall Reach 0.2000 in
- Reach Multiple (10x)
