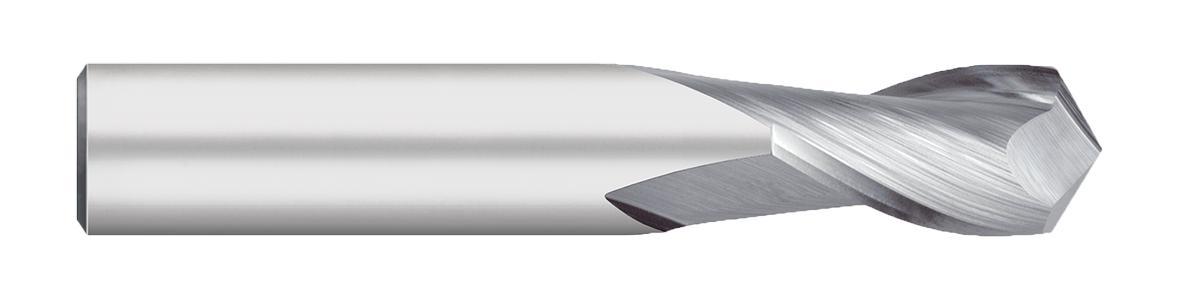

317 1/32 SE 2FL DRILL MILL 120DEGPT
317 1/32 SE 2FL DRILL MILL 120DEGPT
TIUSTC31702
TC31702
17.00
/ EA
http://schema.org/OutOfStock
/Product/TIUSTC31702
- Type: General Purpose
- Included Angle: 120°
- Point Type: Drill Mill
- Cutter Diameter Decimal Inch: 0.0313
- Cutter Diameter Fractional Inch: 1/32
- Cutter Diameter Metric: 0.795
- Material: Solid Carbide
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Number of Flutes: 2
- Surface Treatment: UNCOATED
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Decimal Inch: 0.125
- Length of Cut Fractional Inch: 1/8
- Length of Cut Metric: 3.175
- Manufacturer Name: TITAN USA
- Series: 317
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Application
- Item Features
Engineered for drilling, chamfering, countersinking, spotting, and profiling applications
- Versatile tool engineered for drilling, chamfering, countersinking, spotting, and profiling applications
- Offered in 60 deg , 90 deg , and 120 deg point angles
