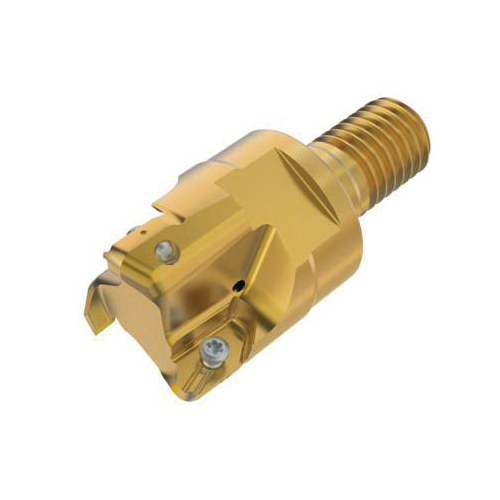

R217.97-1.00-12RE-X08.3A COPY MILL

R217.97-1.00-12RE-X08.3A COPY MILL

SEC03245369 03245369
681.48 / EA
http://schema.org/OutOfStock
R217.97-1.00-12RE-X08.3A COPY MILL
  • Cutter Diameter Decimal Inch: 1
  • Cutter Diameter Fractional Inch: 1
  • Cutter Diameter Metric: 25.4
  • Hand Direction: Right Hand
  • Number of Inserts: 3
  • Overall Length Decimal Inch: 5.906
  • Overall Length Fractional Inch: 5-29/32
  • Overall Length Metric: 150.012
  • Shank Diameter Decimal Inch: 1
  • Shank Diameter Fractional Inch: 1
  • Type: 3-Flute Imperial
  • ANSI Code: R217.97-1.00-12RE-X08-3A
  • Country of Origin: FR
  • Cutting Angle: 90 deg, 90°
  • Has Attributes: Yes
  • Has Image: Yes
  • Head Length: 1.182 in, 1.182in
  • Insert Style: XP..08.., XPKX08
  • ISO Code: R217.97-1.00-12RE-X08-3A
  • Manufacturer Name: Seco Tools
  • Material: Steel
  • Maximum Depth of Cut Decimal Inch: 0.315
  • Modular Connection Thread Size: M12
  • Toolholder Type: R217.97
QTY
Add to List
  • Application
  • Item Features
Side Milling and Dynamic Milling Applications
