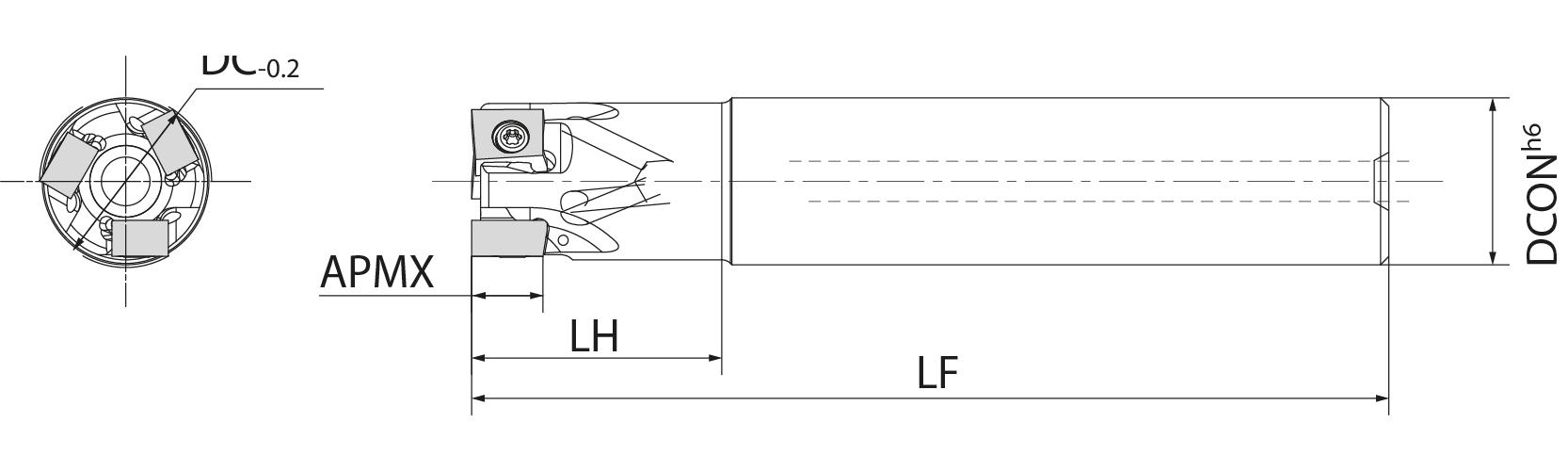

MA90 16S1609T2C STD SHK 90DEG END MILL
MA90 16S1609T2C STD SHK 90DEG END MILL
KYOCTHN08699
THN08699
308.32
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHN08699
- ANSI Code: MA9016S1609T2C
- Cutter Diameter Decimal Inch: 0.63
- Cutter Diameter Metric: 16
- Hand Direction: Right Hand
- Material: Steel
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Series: MA90
- Shank Diameter Decimal Inch: 0.63
- Shank Diameter Metric: 16
- Shank Type: Cylindrical
- Type: Square
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Helix Angle: 90 deg
- ISO Code: MA90-16S16-09T2C
- Lead Angle: 90 deg
- Manufacturer Name: KYOCERA Precision Tools
- Number of Flutes: 2
- Application
- Item Features
- Standards
For Facing, Helical Milling, Plunging, Ramping, Shouldering, Slotting
- Reliable, stable, high quality machining with extended tool life
- Unique tangential 90 deg end mill with economical 4-edge inserts
- Large web thickness for high rigidity
- Peripheral grinding specifications for excellent wall accuracy
- Multi-functional (G-class insert) supports three-dimensional machining
- Unique cutting edge design with excellent fracture resistance and low cutting force
