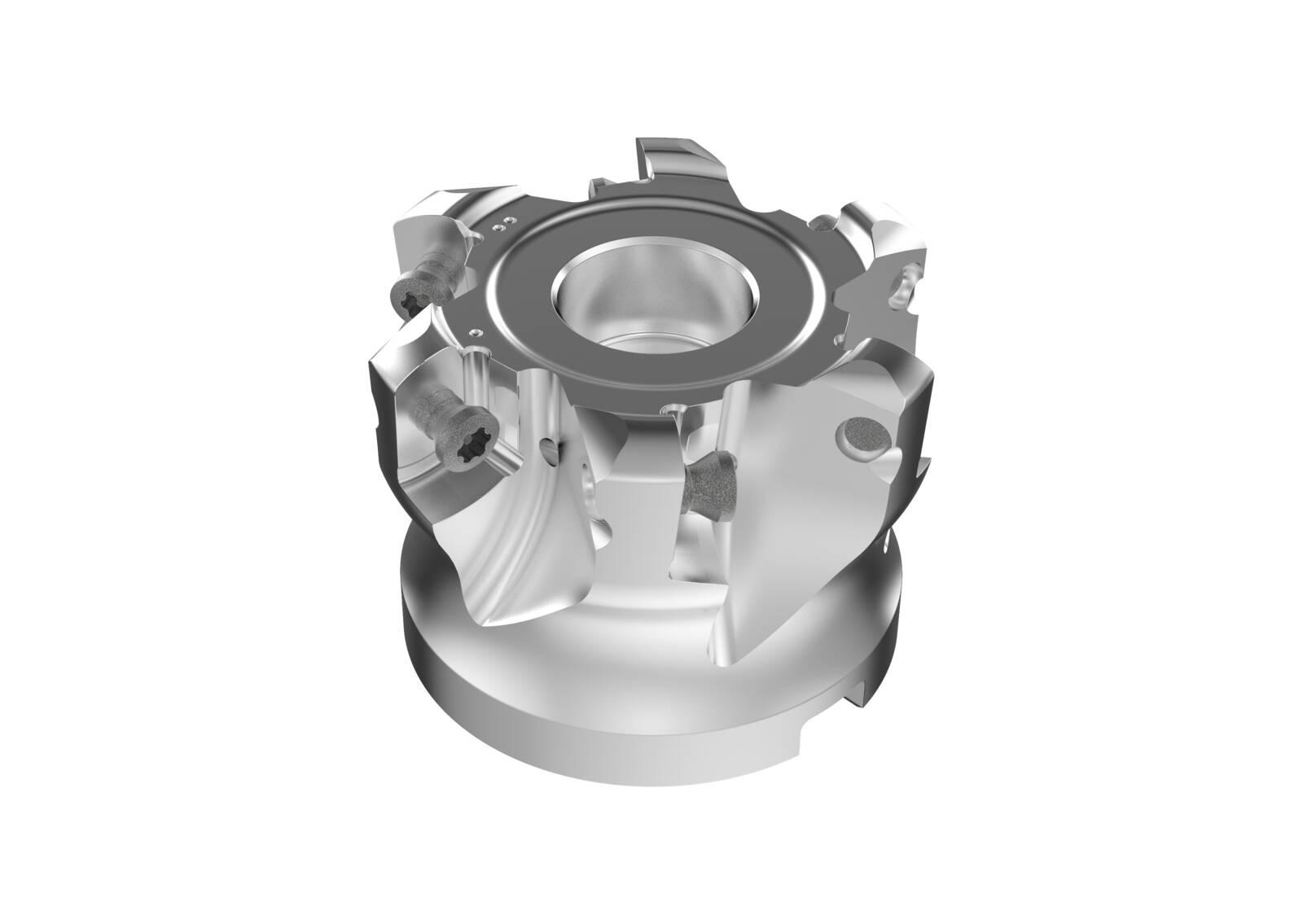

R220.21-02.00-LP09-6A
R220.21-02.00-LP09-6A
SEC03212903
03212903
943.92
/ EA
http://schema.org/OutOfStock
/Product/SEC03212903
- Cutter Diameter Decimal Inch: 1.488
- Cutter Diameter Metric: 37.795
- Hand Direction: Right Hand
- Insert Style: LPKT09
- Maximum Depth of Cut Decimal Inch: 0.071
- Number of Inserts: 6
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Series: R220.21
- Shank Type: Arbor
- Type: Indexable
- ANSI Designation: R220.21-02.00-LP09-6A
- Arbor Hole Diameter: 0.75 in, 0.75in
- Connection Bore Diameter: 0.75in
- Country of Origin: SE
- Cutting Edge Count: 6
- Depth Of Cut Maximum In Feed Direction End: 0.287in
- Depth Of Cut Maximum In Feed Direction Side: 0.071in
- Functional Length: 1.5in
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- Maximum Ramping Angle: 2.2°
- Maximum Speed: 24600 rpm
- Old Manufacturer Number: 03212903
- Programming Radius: 0.136in
- Through Coolant (Yes/No): Yes
- Uncut Thickness: 0.028in
- Item Features
- Up to three times faster machining than conventional methods, perfect for creating a good platform for further machining operations or a final finishing
