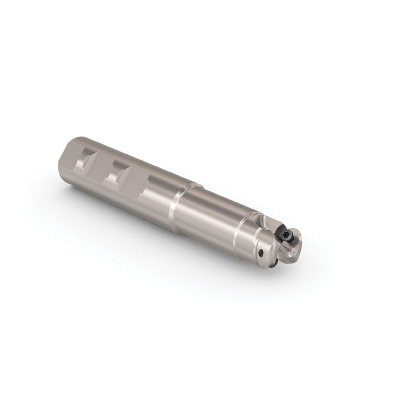

R217.29I-01.00-3F-06.2A

R217.29I-01.00-3F-06.2A

SEC02949640 02949640
582.12 / EA
http://schema.org/OutOfStock
R217.29I-01.00-3F-06.2A
  • ANSI Code: R217.29I-01.00-3F-06-2A
  • Cutter Diameter Decimal Inch: 1
  • Cutter Diameter Metric: 25.4
  • Hand Direction: Right Hand
  • Insert Style: RP..12
  • ISO Code: R217.29I-01.00-3F-06.2A
  • Maximum Depth of Cut Decimal Inch: 0.236
  • Maximum Depth of Cut Metric: 6.0
  • Number of Inserts: 2
  • Overall Length Decimal Inch: 146.8
  • Overall Length Metric: 3728.72
  • Shank Diameter Decimal Inch: 1
  • Shank Diameter Metric: 25.4
  • Shank Type: Welded-On
  • Type: Single Sided Insert
  • Country of Origin: FR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
  • Toolholder Type: R217.29
QTY
Add to List
  • Application
  • Item Features
For general copy milling applications
  • Our comprehensive range of round insert cutters, R217/220.29, is ideal for semi-finishing and roughing in all copy milling applications and materials
