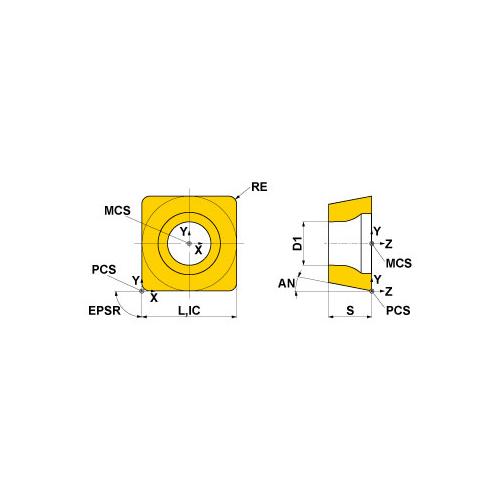

SPMW421 UP20M CFSP CHAMFER MILLING INSERT
SPMW421 UP20M CFSP CHAMFER MILLING INSERT
MIT106029
106029
128.48
/ PK (10)
http://schema.org/OutOfStock
/Product/MIT106029
- ANSI Code: SPMW421 UP20M
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.224 in
- Included Angle: 90 deg
- Inscribed Circle: 12.7 mm
- Insert Style: SPMW
- ISO Code: SPMW120304 UP20M
- Material: Carbide
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Square
- Thickness: 3.18 mm
- Type: Without Wiper
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.7 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: UP20M
- Application
For Cast Iron
