SPMW421 HTI10 SPMW120304 HTI10
SPMW421 HTI10 SPMW120304 HTI10
MIT106027
106027
10.72
/ EA
http://schema.org/OutOfStock
/Product/MIT106027

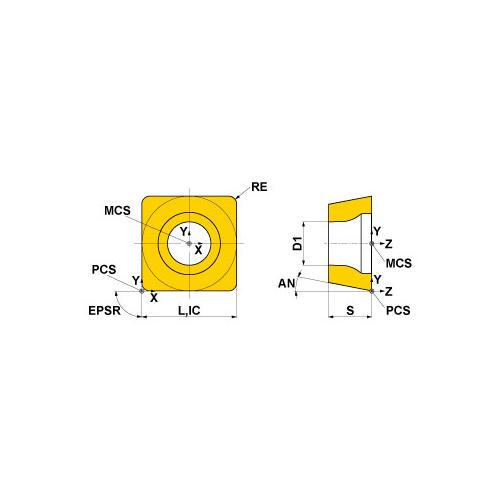

- ANSI Code: SPMW421 HTi10
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.224 in
- Included Angle: 90 deg
- Inscribed Circle: 12.7 mm
- Insert Style: SPMW
- ISO Code: SPMW120304 HTi10
- Material: Carbide
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Square
- Thickness: 3.18 mm
- Type: Without Wiper
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.7 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: HTi10
- Application
For Cast Iron
