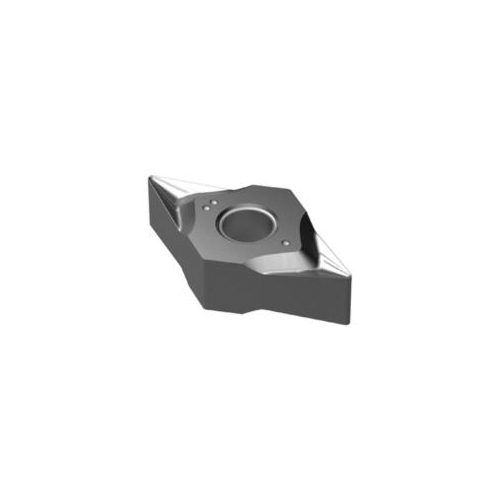

DNGG331-ALU-LT05-INSERT
DNGG331-ALU-LT05-INSERT
TEC7607909
7607909
14.00
/ EA
http://schema.org/OutOfStock
/Product/TEC7607909
- Applicable Materials: Non-Ferrous Metals
- Chipbreaker: ALU
- Corner Radius: 0.016in
- Hand Direction: Neutral
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 331
- Insert Style: DNGG
- Material: Carbide
- Material Grade: N
- Maximum Depth of Cut Decimal Inch: 0.157
- Rake: Negative
- Relief Angle: 0°
- Shape: Diamond
- Surface Treatment: PVD-TiAlN Coated
- Thickness: 0.187in
- Type: High Performance
- ANSI Code: DNGG331-ALU-LT05
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.457in
- Manufacturer Grade: LT05
- Manufacturer Name: TECHNIKS INDUSTRIES
- Application
- Item Features
- Standards
General Applications
- Chipbreaker ALU for all-purpose
- Negative inserts for aluminum
- ISO standard with extreme and unique positive chipbreaker geometry for aluminum turning operations
- Suitable mostly for external operations but good also for internal operations, roughing and finishing operations
ISO Certified
