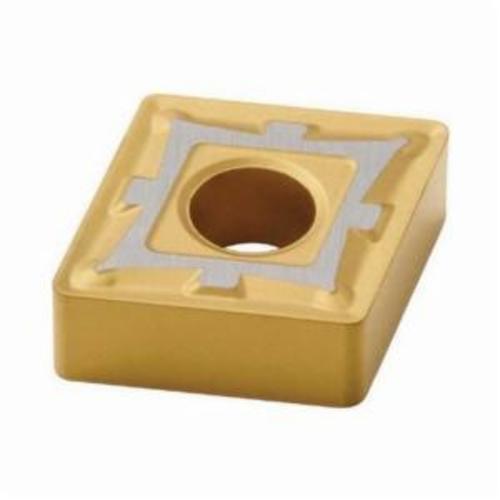

CNMG 431-M3(O) TP40 TURNING INSERT
CNMG 431-M3(O) TP40 TURNING INSERT
SEC74018469
74018469
18.70
/ EA
http://schema.org/OutOfStock
/Product/SEC74018469
- Applicable Materials: Stainless Steel and Steel
- Chipbreaker: M3
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Size: 120404
- Insert Style: CNMG
- ISO Code: CNMG120404-M3 TP40
- Material: Carbide
- Material Grade: M, P
- Maximum Depth of Cut Decimal Inch: 0.207
- Maximum Depth of Cut Metric: 5.25
- Rake: Negative/Positive
- Relief Angle: 0 deg, 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: CVD-TiC+TiCN+TiN Coated
- Thickness: 4.76 mm, 4.76mm
- ANSI Code: CNMG431-M3(O) TP40
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TP40
- Manufacturer Name: Seco Tools
- Application
- Item Features
Medium Applications
