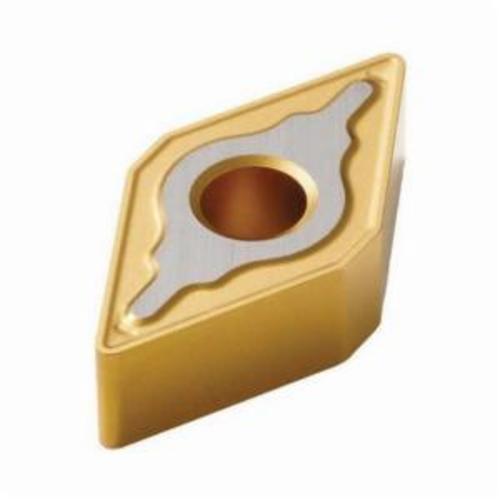

DNMG 442-MR7 TP40 INSERT

DNMG 442-MR7 TP40 INSERT

SEC74017608 74017608
33.63 / EA
http://schema.org/OutOfStock
DNMG 442-MR7 TP40 INSERT
  • Applicable Materials: Stainless Steel and Steel
  • Chipbreaker: MR7
  • Corner Radius: 0.8 mm, 0.8mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.15 mm, 5.15mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 12.7 mm, 12.7mm
  • Insert Size: 150608
  • Insert Style: DNMG
  • ISO Code: DNMG150608-MR7 TP40
  • Material: Carbide
  • Material Grade: M, P
  • Maximum Depth of Cut Decimal Inch: 0.207
  • Maximum Depth of Cut Metric: 5.25
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: CVD-TiC/TiCN+TiN Coated
  • Thickness: 6.35 mm, 6.35mm
  • ANSI Code: DNMG442-MR7 TP40
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP40
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium and Roughing
