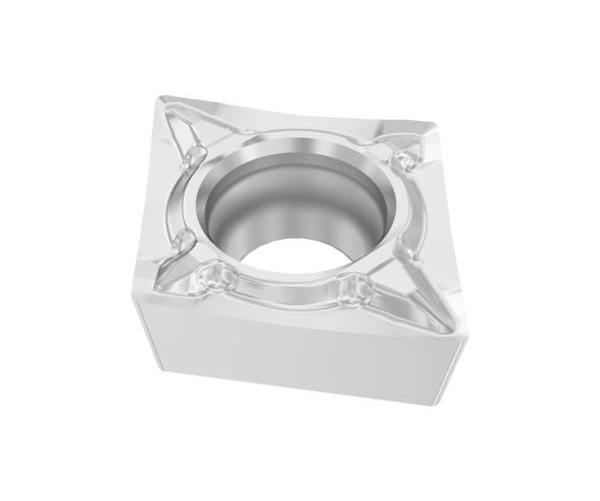

CCMT32.51-F1 TH1501 TURNING INSERT

CCMT32.51-F1 TH1501 TURNING INSERT

SEC10070628 10070628
15.78 / EA
http://schema.org/OutOfStock
CCMT32.51-F1 TH1501 TURNING INSERT
  • Chipbreaker: F1
  • Corner Radius: 0.4 mm, 0.4mm
  • Hole Diameter: 4.5 mm, 4.5mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 9.525 mm, 9.525mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.366
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Shape: Diamond
  • Thickness: 3.97 mm, 3.97mm
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TH1501
  • Manufacturer Name: Seco Tools
  • Series: CCMT
QTY
Add to List
  • Item Features
  • Standards
  • Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
