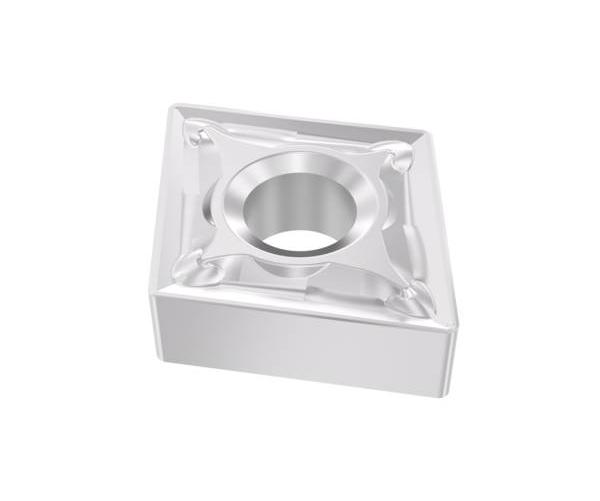

CNMG120412-M3 TM1501 TURNING INSERT
CNMG120412-M3 TM1501 TURNING INSERT
SEC10028454
10028454
19.45
/ EA
http://schema.org/OutOfStock
/Product/SEC10028454
- Chipbreaker: M3
- Corner Radius: 1.2 mm, 1.2mm
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: CNM
- ISO Code: CNMG120412-M3
- Material: Carbide
- Rake: Negative
- Shape: Diamond
- Thickness: 4.76 mm, 4.76mm
- Type: Insert
- ANSI Code: CNMG433-M3
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.67 mm, 11.67mm
- Manufacturer Grade: TM1501
- Manufacturer Name: Seco Tools
- Series: CNMG
- Width: 1 in, 1in
- Application
- Item Features
- Standards
For many continuous cut in stainless steel turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic graade, Highly resistant and optimized grade for many continuous cut in stainless steel turning applications
- Complements in mixes of steel and stainless steel turning
