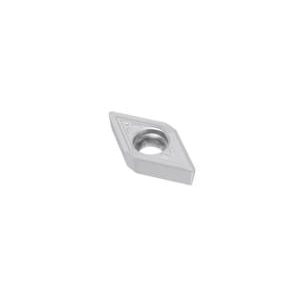

DCMT070204-F1 TP25 TURNING INSERT

DCMT070204-F1 TP25 TURNING INSERT

SEC03310377 03310377
16.82 / EA
http://schema.org/OutOfStock
DCMT070204-F1 TP25 TURNING INSERT
  • Applicable Materials: Steel, Stainless Steel and Cast Iron
  • Chipbreaker: F1
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 2.9 mm, 2.9mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 1/4 in, 1/4in
  • Insert Size: 21.5
  • Insert Style: DCMT
  • ISO Code: DCMT070204-F1
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 07, 7
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN/Al2O3 Coated
  • Thickness: 2.38 mm, 2.38mm
  • ANSI Code: DCMT21.51-F1
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 7.8 mm, 7.8mm
  • Manufacturer Grade: TP25
  • Manufacturer Name: Seco Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Finishing Applications
