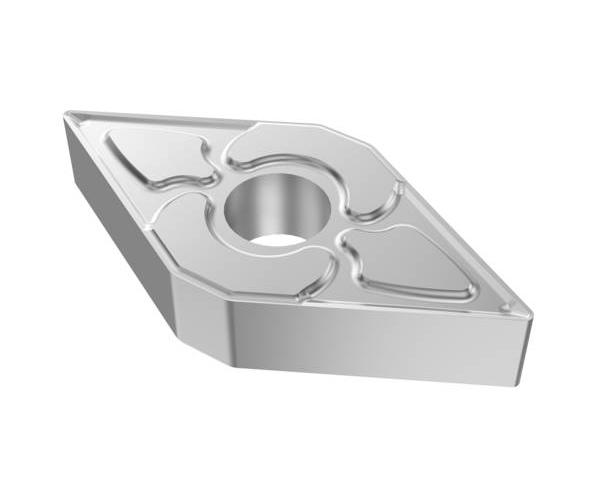

DNMG431-MF4 TM2501
DNMG431-MF4 TM2501
SEC03276270
03276270
322.25
/ PK
http://schema.org/OutOfStock
/Product/SEC03276270
- Chipbreaker: MF4
- Corner Radius: 0.016in, 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 0.5in, 12.7 mm, 12.7mm
- Insert Style: DNMG
- ISO Code: DNMG150404
- Material: Carbide
- Rake: Negative
- Relief Angle: 30 deg, 30°
- Seat Size: 15
- Shape: Diamond
- Surface Treatment: CVD, TiCN/Al2O3
- Thickness: 0.187in, 4.76 mm, 4.76mm
- Type: Insert
- ANSI Designation: DNMG431-MF4
- Clearance Angle: 0°
- Country of Origin: SE
- Cutting Edge Angle: 93°
- Cutting Edge Length: 0.61in
- Fixing Hole Diameter: 0.203in
- Hand of Insert: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Insert Shape Code: D
- ISO Designation: DNMG150404-MF4
- Length: 13.09 mm, 13.09mm
- Manufacturer Grade: TM2501
- Manufacturer Name: Seco Tools
- Old Manufacturer Number: 03276270
- Series: DNMG
- Tool Type: Insert
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness
- First choice in austenitic stainless steel turning, complements in steel turning with heavy intermittent cuts
- Used Edge Detection (Chrome)
