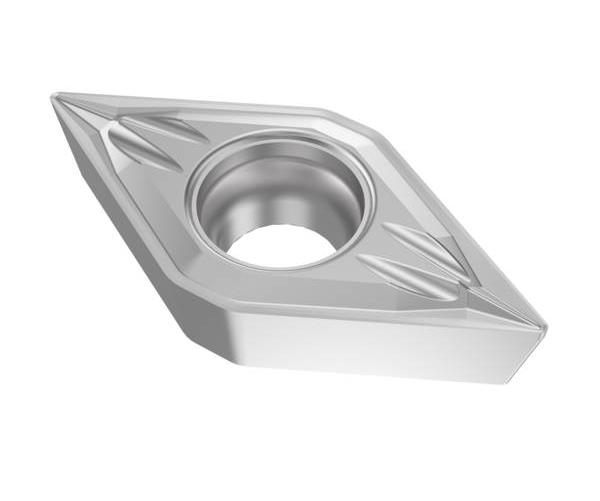

DCMT21.51-MF2 TM3501 INSERT
DCMT21.51-MF2 TM3501 INSERT
SEC03276201
03276201
13.25
/ EA
http://schema.org/OutOfStock
/Product/SEC03276201
- Chipbreaker: MF2
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 6.35 mm, 6.35mm
- Insert Style: DCMT
- ISO Code: DCMT070204
- Material: Carbide
- Rake: Positive
- Relief Angle: 18, 7 deg, 18, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 2.38 mm, 2.38mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.22 mm, 6.22mm
- Manufacturer Grade: TM3501
- Manufacturer Name: Seco Tools
- Series: DCMT
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
- Used Edge Detection (Chrome)
