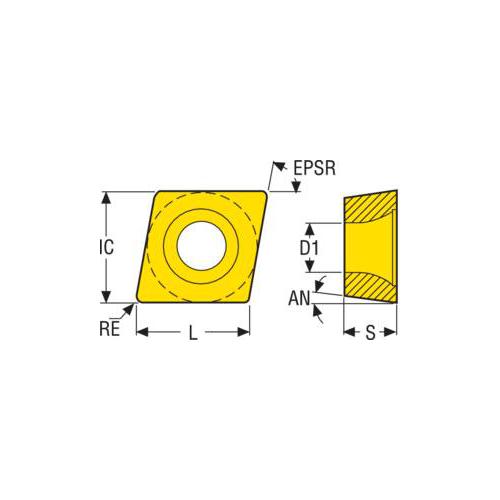

CCMT53.52-M3 TM3501 INSERT
CCMT53.52-M3 TM3501 INSERT
SEC03275976
03275976
34.10
/ EA
http://schema.org/OutOfStock
/Product/SEC03275976
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 5.6 mm, 5.6mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 15.875 mm, 15.875mm
- Insert Style: CCMT
- ISO Code: CCMT160508
- Material: Carbide
- Rake: Positive
- Relief Angle: 18, 7 deg, 18, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 5.56 mm, 5.56mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 15.3 mm, 15.3mm
- Manufacturer Grade: TM3501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
- Used Edge Detection (Chrome)
