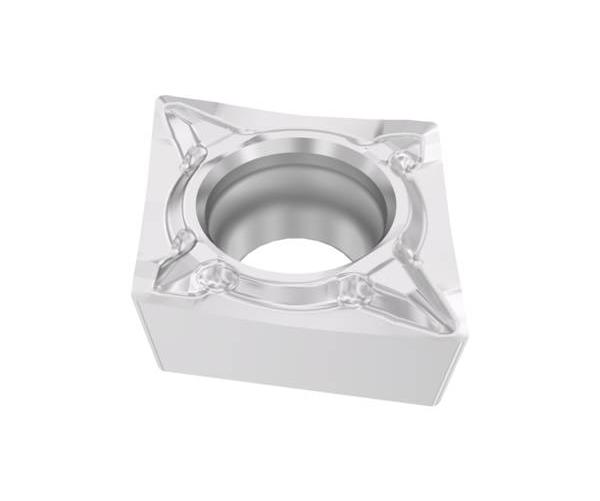

CCMT32.52-F1 TM1501 INSERT
CCMT32.52-F1 TM1501 INSERT
SEC03275939
03275939
15.41
/ EA
http://schema.org/OutOfStock
/Product/SEC03275939
- Chipbreaker: F1
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 4.5 mm, 4.5mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 9.525 mm, 9.525mm
- Insert Style: CCMT
- ISO Code: CCMT09T308
- Material: Carbide
- Rake: Positive
- Relief Angle: 17, 7 deg, 17, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 3.97 mm, 3.97mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.85 mm, 8.85mm
- Manufacturer Grade: TM1501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Application
- Item Features
- Standards
For many continuous cut in stainless steel turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic graade, Highly resistant and optimized grade for many continuous cut in stainless steel turning applications
- Complements in mixes of steel and stainless steel turning
- Used Edge Detection (Chrome)
