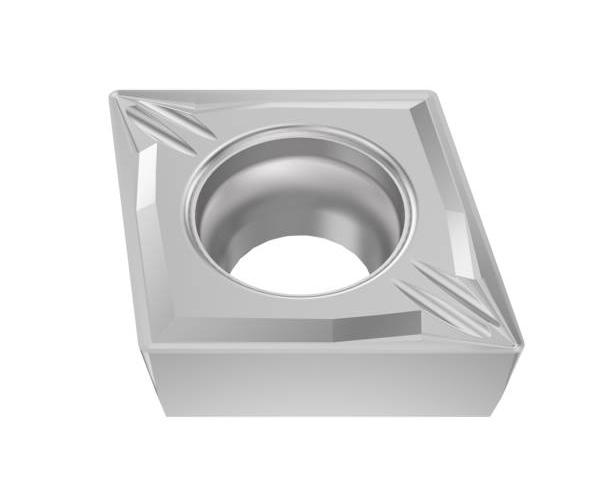

CCMT32.50.5-MF2 TM3501 INSERT
CCMT32.50.5-MF2 TM3501 INSERT
SEC03275927
03275927
17.66
/ EA
http://schema.org/OutOfStock
/Product/SEC03275927
- Corner Radius: 0.2 mm, 0.2mm
- Hand Direction: Neutral
- Hole Diameter: 4.5 mm, 4.5mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 9.525 mm, 9.525mm
- Insert Style: CCMT
- ISO Code: CCMT09T302
- Material: Carbide
- Rake: Positive
- Relief Angle: 18, 7 deg, 18, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 3.97 mm, 3.97mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.47 mm, 9.47mm
- Manufacturer Grade: TM3501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
