CCMT21.52-M3 TM2501 INSERT
CCMT21.52-M3 TM2501 INSERT
SEC03275921
03275921
13.25
/ EA
http://schema.org/OutOfStock
/Product/SEC03275921

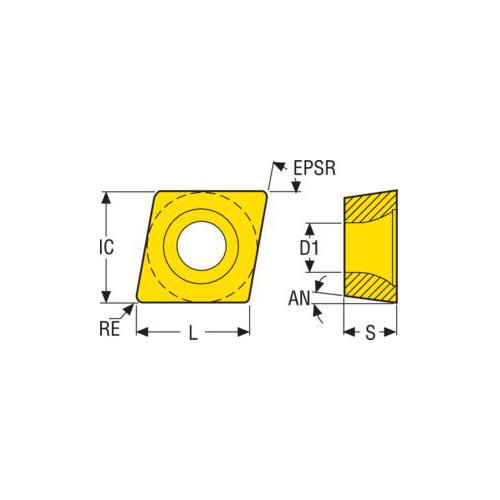

- Chipbreaker: M3
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 6.35 mm, 6.35mm
- Insert Style: CCMT
- ISO Code: CCMT060208
- Material: Carbide
- Rake: Positive
- Relief Angle: 18, 7 deg, 18, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 2.38 mm, 2.38mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 5.58 mm, 5.58mm
- Manufacturer Grade: TM2501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness
- First choice in austenitic stainless steel turning, complements in steel turning with heavy intermittent cuts
