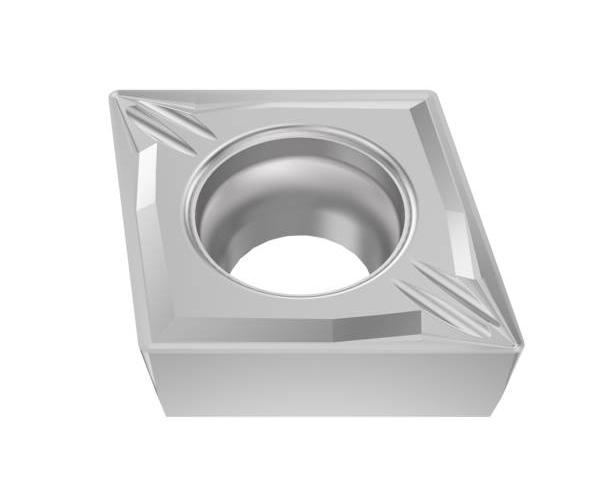

CCMT21.51-MF2 TM1501 INSERT
CCMT21.51-MF2 TM1501 INSERT
SEC03275917
03275917
13.25
/ EA
http://schema.org/OutOfStock
/Product/SEC03275917
- Chipbreaker: MF2
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 6.35 mm, 6.35mm
- Insert Style: CCMT
- ISO Code: CCMT060204
- Material: Carbide
- Rake: Positive
- Relief Angle: 18, 7 deg, 18, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 2.38 mm, 2.38mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.04 mm, 6.04mm
- Manufacturer Grade: TM1501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Application
- Item Features
- Standards
For many continuous cut in stainless steel turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic graade, Highly resistant and optimized grade for many continuous cut in stainless steel turning applications
- Complements in mixes of steel and stainless steel turning
