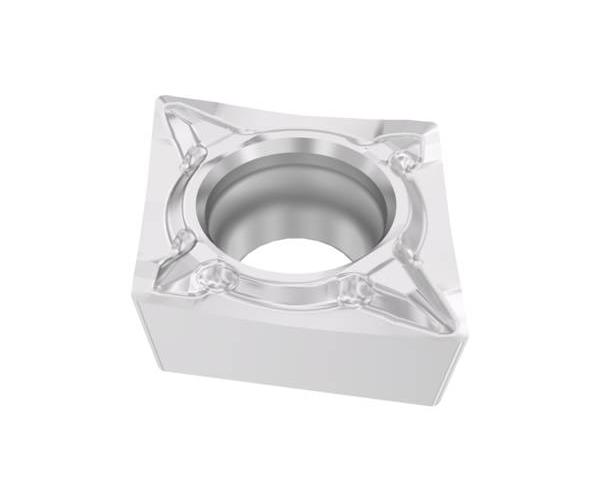

CCMT21.51-F1 TM1501
CCMT21.51-F1 TM1501
SEC03275908
03275908
132.50
/ PK (10)
http://schema.org/OutOfStock
/Product/SEC03275908
- Chipbreaker: F1
- Corner Radius: 0.016in, 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 0.25in, 6.35 mm, 6.35mm
- Insert Style: CCMT
- ISO Code: CCMT060204
- Material: Carbide
- Rake: Positive
- Relief Angle: 17, 7 deg, 17, 7°
- Seat Size: 06, 6
- Shape: Diamond
- Surface Treatment: CVD, TiCN/Al2O3
- Thickness: 0.094in, 2.38 mm, 2.38mm
- Type: Insert
- ANSI Designation: CCMT21.51-F1
- Clearance Angle: 7°
- Country of Origin: SE
- Cutting Edge Angle: 95°
- Cutting Edge Length: 0.254in
- Fixing Hole Diameter: 0.114
- Hand of Insert: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Insert Shape Code: C
- ISO Designation: CCMT060204-F1
- Length: 6.04 mm, 6.04mm
- Manufacturer Grade: TM1501
- Manufacturer Name: Seco Tools
- Old Manufacturer Number: 03275908
- Series: CCMT
- Tool Type: Insert
- Application
- Item Features
- Standards
For many continuous cut in stainless steel turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic graade, Highly resistant and optimized grade for many continuous cut in stainless steel turning applications
- Complements in mixes of steel and stainless steel turning
