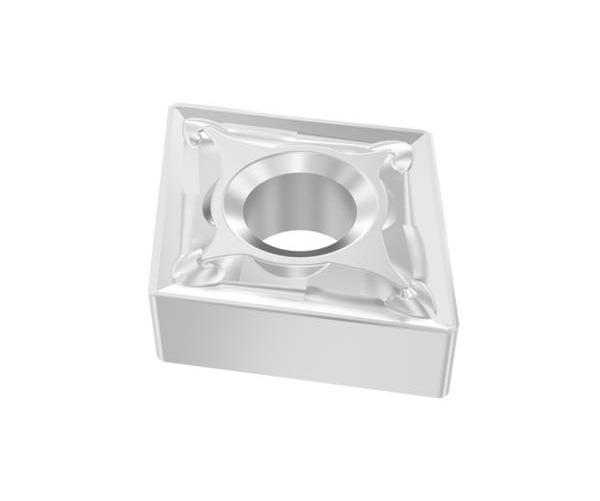

CNMG643-M3 TM3501 INSERT
CNMG643-M3 TM3501 INSERT
SEC03273934
03273934
56.18
/ EA
http://schema.org/OutOfStock
/Product/SEC03273934
- Corner Radius: 1.2 mm, 1.2mm
- Hand Direction: Neutral
- Hole Diameter: 7.92 mm, 7.92mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 19.05 mm, 19.05mm
- Insert Style: CNMG
- ISO Code: CNMG190612
- Material: Carbide
- Rake: Negative
- Relief Angle: 18 deg, 18°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 6.35 mm, 6.35mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 18.12 mm, 18.12mm
- Manufacturer Grade: TM3501
- Manufacturer Name: Seco Tools
- Series: CNMG
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
- Used Edge Detection (Chrome)
