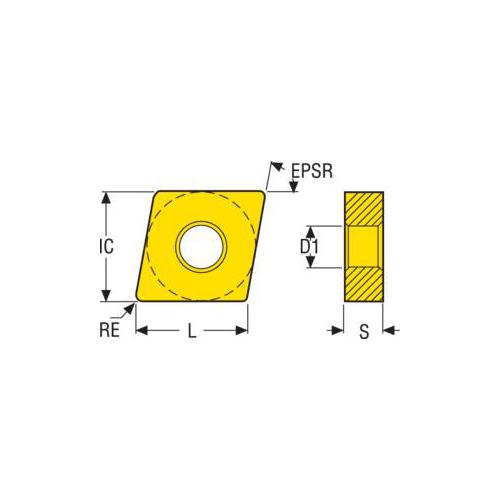

CNMG544-M5 TM2501
CNMG544-M5 TM2501
SEC03273932
03273932
403.07
/ PK (10)
http://schema.org/OutOfStock
/Product/SEC03273932
- Corner Radius: 0.063in, 1.6 mm, 1.6mm
- Hand Direction: Neutral
- Hole Diameter: 6.35 mm, 6.35mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 0.625in, 15.875 mm, 15.875mm
- Insert Style: CNMG
- ISO Code: CNMG160616
- Material: Carbide
- Rake: Negative
- Relief Angle: 17 deg, 17°
- Seat Size: 16
- Shape: Diamond
- Surface Treatment: CVD, TiCN/Al2O3
- Thickness: 0.25in, 6.35 mm, 6.35mm
- Type: Insert
- ANSI Designation: CNMG544-M5
- Clearance Angle: 0°
- Country of Origin: IN
- Cutting Edge Angle: 95°
- Cutting Edge Length: 0.635in
- Fixing Hole Diameter: 0.25in
- Hand of Insert: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Insert Shape Code: C
- ISO Designation: CNMG160616-M5
- Length: 14.48 mm, 14.48mm
- Manufacturer Grade: TM2501
- Manufacturer Name: Seco Tools
- Old Manufacturer Number: 03273932
- Series: CNMG
- Tool Type: Insert
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness
- First choice in austenitic stainless steel turning, complements in steel turning with heavy intermittent cuts
- Used Edge Detection (Chrome)
