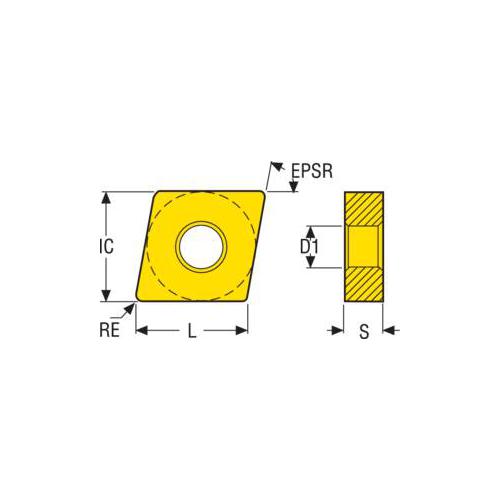

CNMG543-M5 TM1501 INSERT
CNMG543-M5 TM1501 INSERT
SEC03273919
03273919
40.31
/ EA
http://schema.org/OutOfStock
/Product/SEC03273919
- Chipbreaker: M5
- Corner Radius: 1.2 mm, 1.2mm
- Hand Direction: Neutral
- Hole Diameter: 6.35 mm, 6.35mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 15.875 mm, 15.875mm
- Insert Style: CNMG
- ISO Code: CNMG160612
- Material: Carbide
- Rake: Negative
- Relief Angle: 17 deg, 17°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 6.35 mm, 6.35mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 14.89 mm, 14.89mm
- Manufacturer Grade: TM1501
- Manufacturer Name: Seco Tools
- Series: CNMG
- Application
- Item Features
- Standards
For many continuous cut in stainless steel turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic graade, Highly resistant and optimized grade for many continuous cut in stainless steel turning applications
- Complements in mixes of steel and stainless steel turning
- Used Edge Detection (Chrome)
