CNMG432-MF4 TP3501 INSERT
CNMG432-MF4 TP3501 INSERT
SEC03272737
03272737
21.33
/ EA
http://schema.org/OutOfStock
/Product/SEC03272737

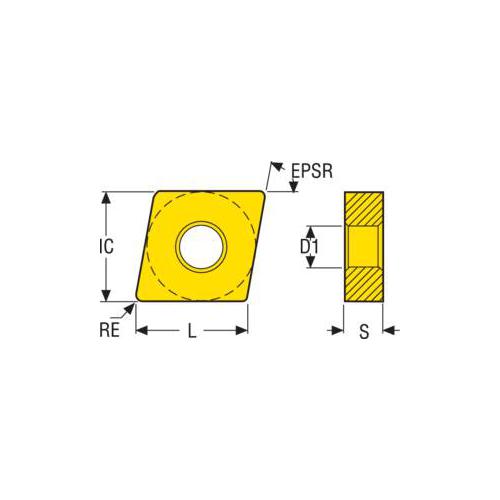

- Chipbreaker: MF4
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: CNMG
- ISO Code: CNMG120408
- Material: Carbide
- Rake: Negative
- Relief Angle: 30 deg, 30°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 4.76 mm, 4.76mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.476 in, 0.476in
- Manufacturer Grade: TP3501
- Manufacturer Name: Seco Tools
- Series: CNMG
- Application
- Item Features
- Standards
For versatile performance in turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade, Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts
