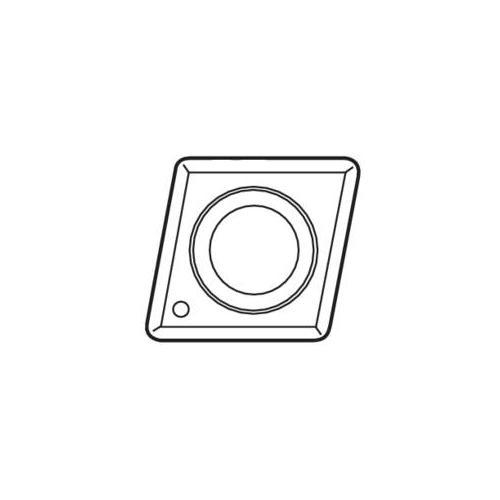

CCMT21.51-FF1 TP3501 TURNING INSERT
CCMT21.51-FF1 TP3501 TURNING INSERT
SEC03169506
03169506
13.25
/ EA
http://schema.org/OutOfStock
/Product/SEC03169506
- Chipbreaker: FF1
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 6.35 mm, 6.35mm
- Insert Style: CCMT
- Material: Carbide
- Rake: Positive
- Relief Angle: 10, 7 deg, 10, 7°
- Shape: Diamond
- Surface Treatment: TiCN/Al2O3
- Thickness: 2.38 mm, 2.38mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.26 in, 0.26in
- Manufacturer Grade: TP3501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Width: 0.256 in, 0.256in
- Application
- Item Features
- Standards
For versatile performance in turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade, Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts
