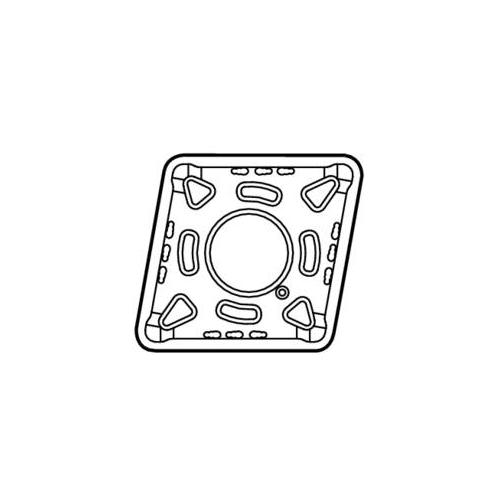

CNMG546-M6 TP3501 ISO-P TURNING INSERT
CNMG546-M6 TP3501 ISO-P TURNING INSERT
SEC03099677
03099677
40.31
/ EA
http://schema.org/OutOfStock
/Product/SEC03099677
- Chipbreaker: M6
- Corner Radius: 2.4 mm, 2.4mm
- Hole Diameter: 6.35 mm, 6.35mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 15.875 mm, 15.875mm
- Insert Style: CNM
- ISO Code: CNMG160624-M6
- Material: Carbide
- Rake: Negative
- Shape: Diamond
- Thickness: 6.35 mm, 6.35mm
- Type: Insert
- ANSI Code: CNMG546-M6
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.63 in, 0.63in
- Manufacturer Grade: TP3501
- Manufacturer Name: Seco Tools
- Series: CNMG
- Width: 1 in, 1in
- Application
- Item Features
- Standards
For versatile performance in turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade, Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts
