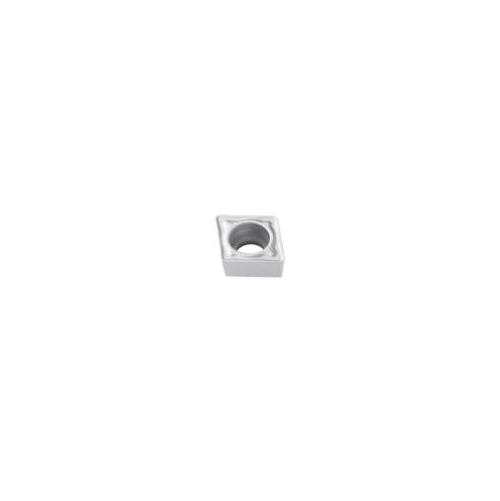

CCMT433-M5 TP3501 ISO-S TURNING INSERT
CCMT433-M5 TP3501 ISO-S TURNING INSERT
SEC03099675
03099675
21.52
/ EA
http://schema.org/OutOfStock
/Product/SEC03099675
- Chipbreaker: M5
- Corner Radius: 1.2 mm, 1.2mm
- Hole Diameter: 5.6 mm, 5.6mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: CCM
- ISO Code: CCMT120412-M5
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg, 7°
- Shape: Diamond
- Thickness: 4.76 mm, 4.76mm
- Type: Insert
- ANSI Code: CCMT433-M5
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.51 in, 0.51in
- Manufacturer Grade: TP3501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Width: 1 in, 1in
- Application
- Item Features
- Standards
For versatile performance in turning applications
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade, Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts
