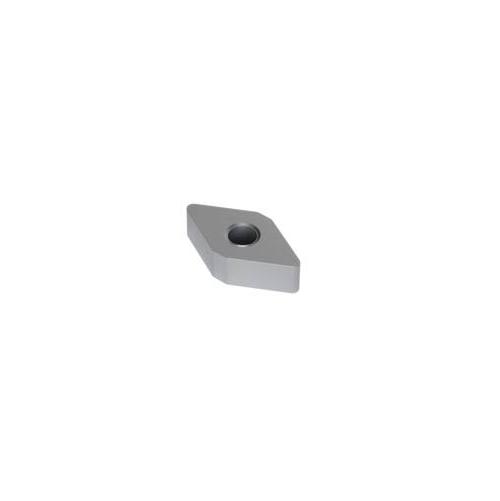

DNMA 432 TK0501 TURNING INSERT
DNMA 432 TK0501 TURNING INSERT
SEC03064388
03064388
32.04
/ EA
http://schema.org/OutOfStock
/Product/SEC03064388
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: DNMA
- ISO Code: DNMA150408
- Material: Carbide
- Rake: Negative
- Shape: Diamond
- Surface Treatment: Ti(C/N)/Al2O3/Cr
- Thickness: 4.76 mm, 4.76mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.610 in, 0.610in
- Manufacturer Grade: TK0501
- Manufacturer Name: Seco Tools
- Old Manufacturer Number: 46697
- Series: DNMA
- Width: 0.61 in, 0.61in
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade, extremely wear resistant optimized grade choice for machining of grey cast iron and many ductile cast irons
