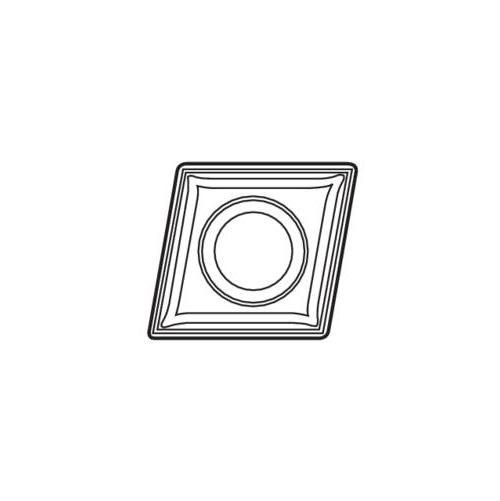

CCMT21.51-M3 TK1501 ISO-S TURNING INSERT
CCMT21.51-M3 TK1501 ISO-S TURNING INSERT
SEC03062944
03062944
13.25
/ EA
http://schema.org/OutOfStock
/Product/SEC03062944
- Chipbreaker: M3
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 6.35 mm, 6.35mm
- Insert Style: CCMT
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg, 7°
- Shape: Diamond
- Surface Treatment: Ti(C/N)/Al2O3/Cr
- Thickness: 2.38 mm, 2.38mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.260 in, 0.260in
- Manufacturer Grade: TK1501
- Manufacturer Name: Seco Tools
- Series: CCMT
- Width: 0.256 in, 0.256in
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,highly wear resistant grade for cast irons in general as well as in steels
- The grade is particularly capable in machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts
