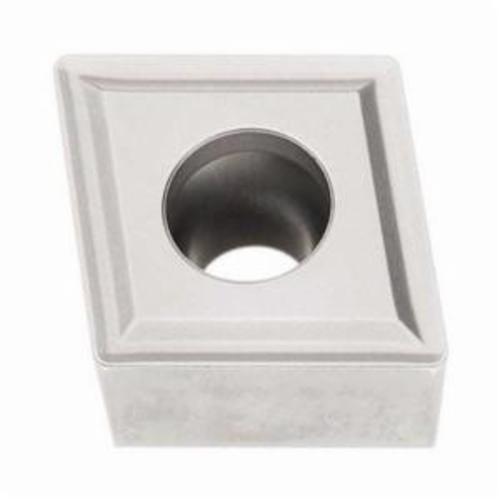

CCMT53.52-M3 TP2501 DURATOMIC INSERT

CCMT53.52-M3 TP2501 DURATOMIC INSERT

SEC02960865 02960865
34.10 / EA
http://schema.org/OutOfStock
CCMT53.52-M3 TP2501 DURATOMIC INSERT
  • Applicable Materials: Steel
  • Chipbreaker: M3
  • Corner Radius: 0.8 mm, 0.8mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.6 mm, 5.6mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 15.88 mm, 15.88mm
  • Insert Size: 160508
  • Insert Style: CCMT
  • ISO Code: CCMT160508-M3 TP2501
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.315
  • Maximum Depth of Cut Metric: 8.0
  • Rake: Negative/Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 16
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN+Al2O3 Coated
  • Thickness: 5.56 mm, 5.56mm
  • ANSI Code: CCMT53.52-M3 TP2501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP2501
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium Applications
