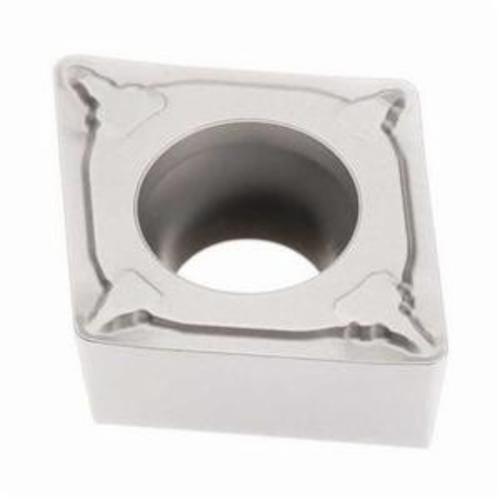

CCMT431W-F1 TP2501 DURATOMIC INSERT
CCMT431W-F1 TP2501 DURATOMIC INSERT
SEC02960818
02960818
25.00
/ EA
http://schema.org/OutOfStock
/Product/SEC02960818
- Applicable Materials: Steel
- Chipbreaker: W-F1
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 5.6 mm, 5.6mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Size: 120404
- Insert Style: CCMT
- ISO Code: CCMT120404W-F1 TP2501
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut Decimal Inch: 0.207
- Maximum Depth of Cut Metric: 5.25
- Rake: Positive
- Relief Angle: 7 deg, 7°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: CVD-TiCN+Al2O3 Coated
- Thickness: 4.76 mm, 4.76mm
- ANSI Code: CCMT431W-F1 TP2501
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TP2501
- Manufacturer Name: Seco Tools
- Application
Finishing Applications
