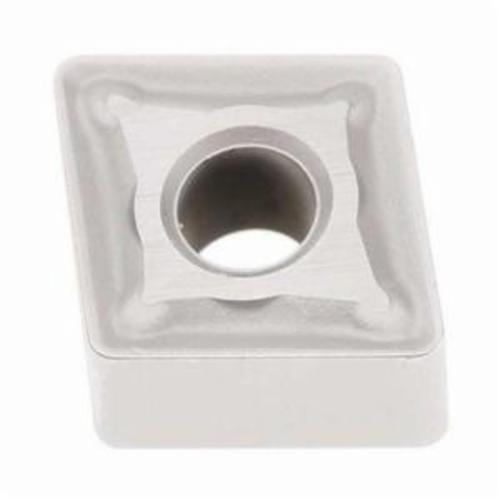

CNMG322-M3 TP2501 DURATOMIC INSERT

CNMG322-M3 TP2501 DURATOMIC INSERT

SEC02960681 02960681
12.78 / EA
http://schema.org/OutOfStock
CNMG322-M3 TP2501 DURATOMIC INSERT
  • Applicable Materials: Steel
  • Chipbreaker: M3
  • Corner Radius: 0.8 mm, 0.8mm
  • Hand Direction: Neutral
  • Hole Diameter: 3.81 mm, 3.81mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 9.53 mm, 9.53mm
  • Insert Size: 090308, 90308
  • Insert Style: CNMG
  • ISO Code: CNMG090308-M3 TP2501
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.138
  • Maximum Depth of Cut Metric: 3.5
  • Rake: Negative/Positive
  • Relief Angle: 0 deg, 0°
  • Seat Size: 09, 9
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN+Al2O3 Coated
  • Thickness: 3.18 mm, 3.18mm
  • ANSI Code: CNMG322-M3 TP2501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP2501
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium Applications
