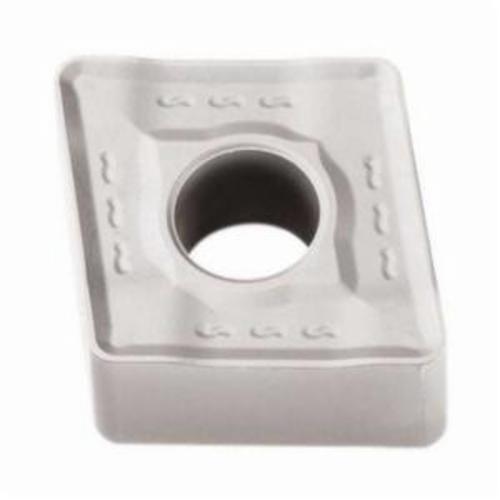

CNMM544-RR6 TP1501 DURATOMIC INSERT

CNMM544-RR6 TP1501 DURATOMIC INSERT

SEC02960660 02960660
40.31 / EA
http://schema.org/OutOfStock
CNMM544-RR6 TP1501 DURATOMIC INSERT
  • Applicable Materials: Steel
  • Chipbreaker: RR6
  • Corner Radius: 1.6 mm, 1.6mm
  • Hand Direction: Neutral
  • Hole Diameter: 6.35 mm, 6.35mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 15.88 mm, 15.88mm
  • Insert Size: 160616
  • Insert Style: CNMM
  • ISO Code: CNMM160616-RR6 TP1501
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.315
  • Maximum Depth of Cut Metric: 8.0
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 16
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN+Al2O3 Coated
  • Thickness: 6.35 mm, 6.35mm
  • ANSI Code: CNMM544-RR6 TP1501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP1501
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Roughing Applications
